Restoration of natural teeth and implants to proper form and function is integral to our patient treatment success. The objective is to maintain physiologic integrity in harmonious relationship with adjacent hard and soft tissues.

The goal of complex restorative treatment is to attain:

  • Freedom from disease in all masticatory structures
  • Maintain a healthy periodontium
  • Obtain stable TMJs
  • Create a stable occlusion
  • Maintain healthy teeth (and implants, as needed)
  • Create optimal esthetics
  • Provide comfortable and smooth function

These goals for restorative dentistry are important to gain predictable results that will last a long period for our patients. Individually, each contributes to the overall restoration success. However, the functional component represents a critical piece to the puzzle of rehabilitating complex and dysfunctional presentation. Proper function is crucial to a stable long-term result.

Establishing and managing anterior guidance during functional movements is a key aspect for attaining this success — and custom anterior guide tables are instrumental in this regard.

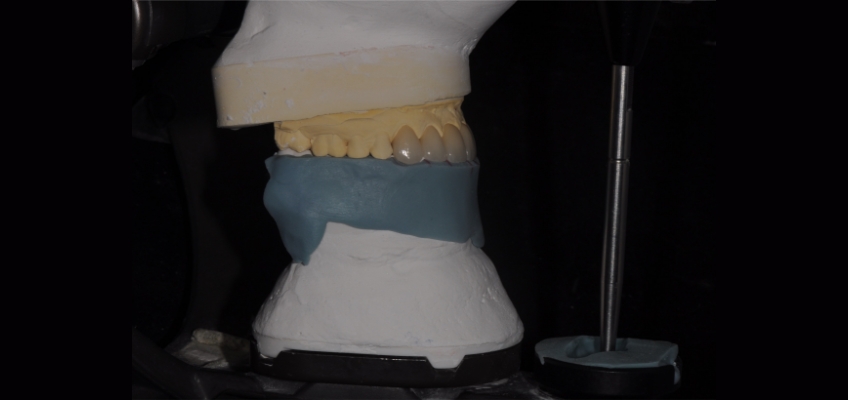

incisal guide table side view
Figure 1: Incisal guide table

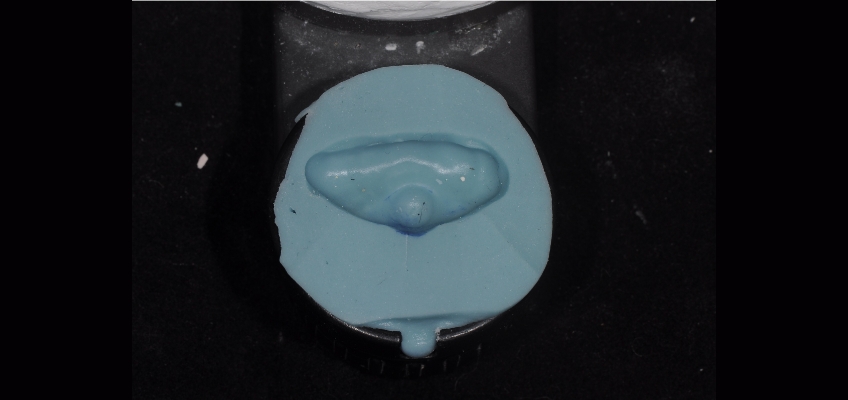

incisal guide table
Figure 2: Incisal guide table

Unfortunately, many dentists (and patients) think of occlusion as static. The general perspective is putting the upper and lower teeth together, biting down, or interdigitating tooth models together.

These perspectives are important, for sure — but occlusion is dynamic rather than static. How the teeth relate to each other in moving pathways determines the long-term stability and success for restorations.

Understanding and designing functional courses that help attain and create stability leads to predictable outcomes, and anterior guidance is the chief component that leads to long-term success.

Schyuler's principles of occlusal dynamics

The term dates to 1953, when Dr. Clyde Schyuler introduced the concept of anterior guidance. The principles of occlusal dynamics that he embraced are still valid and applied today. When applied to dental restorations, these principles help to create occlusal stability and functional success.

Schyuler's principles are:

  1. Static coordinated occlusal contacts of the maximum number of teeth when the mandible is in centric relation
  2. Anterior guidance in harmony with lateral eccentric position on the working side
  3. Disclusion of all posterior teeth in protrusion
  4. Disclusion of all non-working inclines in lateral excursions
  5. Group function (as needed) of working side inclines in lateral excursions

Schyuler espoused the importance of managing tooth contacts during functional (dynamic) movements. Many other researchers have also advocated the use and importance of anterior guidance in restorative dentistry. Developing occlusions without attention to these principles leads to potential failure. Anterior guidance was Schyuler's key to success — and are the “tool” that is used to achieve these predictable results.

The value of anterior guide tables for restoring anterior teeth

We know the importance and value of anterior guidance — the goal is to disclude the posterior teeth in lateral functional movements. Whether canine contact or group function is utilized depends on the stability of the teeth and periodontium for each individual situation.

In restoring anterior teeth, the decision must be made to either maintain the existing guidance patterns or change the anterior guidance to create stability. Anterior guide tables are utilized for these changes.

Incisal guide tables are fabricated from face-bow mounted models of natural teeth or provisionals. Excursions are traced from the centric position outward to maximum lateral (eccentric) position on the semi-adjustable articulator.

Typically, an acrylic material is utilized for the incisal guide pin to trace the lateral movements and create the guidance patterns. Alternatively, a laboratory putty may be substituted as the tracing medium.

The tracing pattern/process moves the guide pin through the “doughy” material until it completely sets. This tracing provides a replica of the lingual and incisal contours. When the dental technician then mounts the prepared teeth models, the final restorative contours may ideally be formed by the technician using the custom incisal guide table as a reference.

Changing incisal guidance patterns

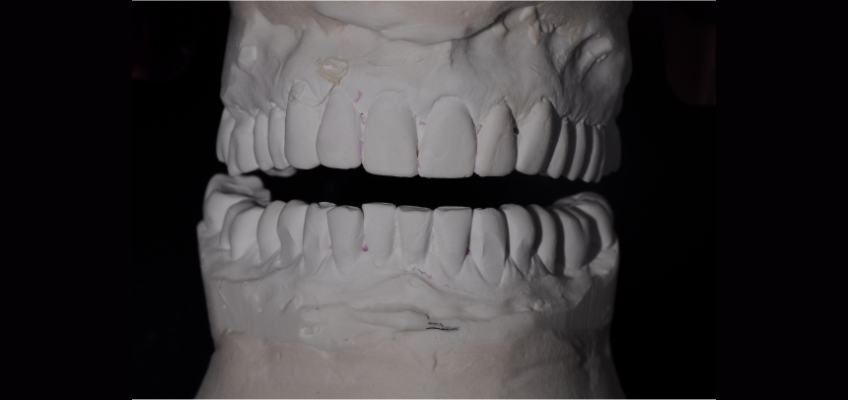

Teeth model to correct incisal length and anterior guidance
Figure 3: Anterior tooth wear and erosion requires correction of incisal length and anterior guidance.

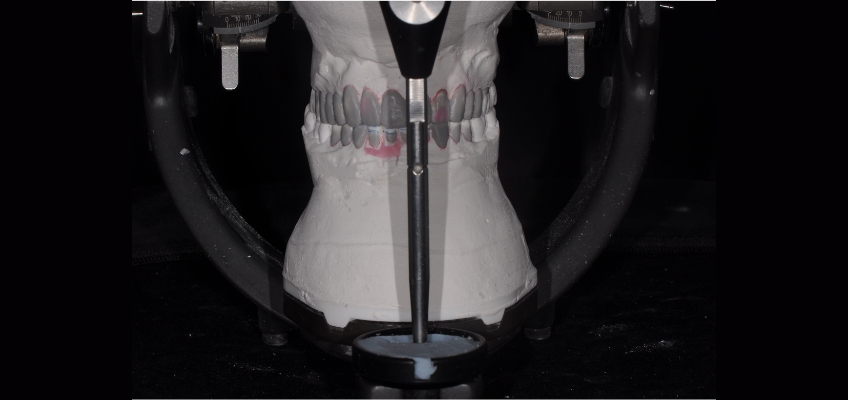

Fabricating incisal guide table
Figure 4: Incisal guide table fabricated from incisal edge corrections and new diagnostic wax-up.

When restoring anterior teeth to correct esthetics and function, provisionalization is critical. Establishing proper shapes, contours, and functional surfaces are key components of provisionals. These changes can and will direct and alter the guidance that subsequently occurs.

The provisionals “test-drive” the esthetic and functional change. Correction and alteration of the provisional contours affects the guidance and tooth-to-tooth relationships. Once these contours are acceptable, casts of these tooth shapes are obtained, and duplication of these contours can be established by fabricating the incisal guide table.

This customized “pathway device” helps the dental technician establish the same ceramic/metal contours of the final restorations.

Maintaining existing guidance or slope

Excessive tooth wear
Figure 5: Excessive tooth wear in a 21 year old patient.

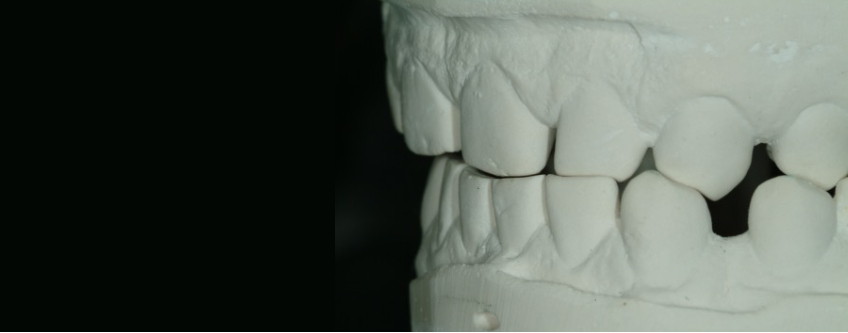

Crossover pattern tooth wear with red arrow indicators
Figure 6: Tooth wear - crossover pattern. Worn contour slopes incorporated into the incisal guide table.

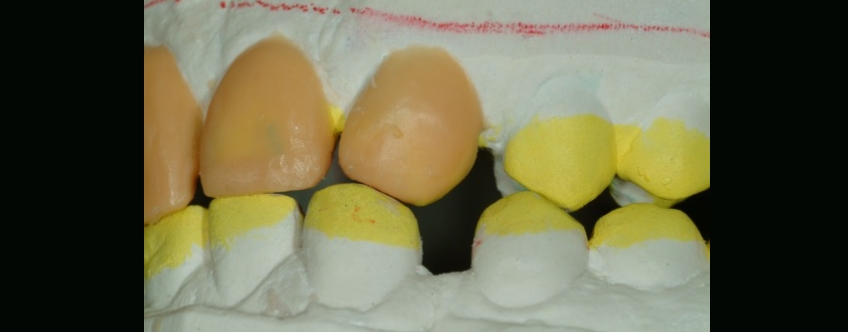

Developing wax-up with yellow indicators on teeth
Figure 7: Developing wax-up from incisal guide table to correspond with existing wear patterns.
exam ceramic restorations final
Figure 8: Final emax ceramic restorations incorporating wear patterns, made from incisal guide table of pre-existing teeth.

Sometimes it is important to maintain the anterior guidance contours, which may be necessary for patients that require restoration of a worn dentition. Patients with excessive wear patterns may not be able to tolerate a steepened anterior guidance pattern — an inadvertent increase in steepness could result in premature ceramic restoration fracture, tooth mobility, or another catastrophic event.

To avoid these situations, it is necessary to “duplicate” the existing guidance pathways of the worn dentition so as not to steepen the anterior guidance. This process is accomplished by mounting models (via face-bow transfer on a semi-adjustable articulator) of the patients existing worn teeth.

An incisal guide table is fabricated by tracing the worn tooth patterns in excursive directions. Once the custom guide table is fabricated, the diagnostic wax-up is completed using this guide table as a reference to the slopes and angles of disclusion represented from the worn dentition and wear patterns.

By using this approach, the new provisional restorations may be fabricated in the existing guidance contours. This technique will allow for better control and predictability as the restorative process proceeds.

As a reference, this thought process and technique are well outlined and thoroughly discussed in our Worn Dentition campus workshop and Treating the Worn Dentition online seminar.

Achieving predictability with anterior guide tables

I hope this discussion and explanations provide some insight into the importance and use of incisal guide tables. The Spear online platform contains additional information about the use and fabrication of these guide tables — additionally, you can utilize your dental laboratory technicians as a valuable source of information and understanding.

Restoration of debilitated dentitions can be very challenging — there is significant complexity to re-establishing proper function and stability in these cases. The use and application of incisal guide tables reduce some of the anxiety associated with the restorative process.

These devices provide reference, guidance, and predictability for the outcome. I encourage you to learn how to utilize and implement these guide tables into routine restorative practice.


Jeffrey Bonk, D.D.S., is a member of Spear Resident Faculty.

References:

  1. Schyuler C. H., Factors in occlusion applicable to restorative dentistry, J. Prosth. Dent. 3:722-82, 1953
