A Step-by-Step Guide to Fabricating the Protrusive Record

Taking records and indices on patients can be challenging in the beginning. But as always, with repetition and experience, we move toward proficiency.

At some point or another, we all toil over gathering an accurate centric relation record (or a record taken in seated condylar position). It is the Holy Grail of data gathering! It is nebulous, esoteric, and despite its mysticism, it has little value on its own.

When taking records, each step is no more or less important than the one before or the next to come. The centric record may be more involved and gratifying to achieve, but it tells us nothing about the other mandibular positions a patient may move toward.

A number of articles ago, I wrote on the importance of the facebow transfer. This article explores the protrusive record, an afterthought to some because of its presumed ease of execution. If taken lightly, mistakes can be made.

This article will give some insights on:

• The purpose of taking a protrusive record
• Materials to use when taking a protrusive record
• How to fabricate a wax platform
• How to replicate a wax platform
• When to use which material

Purpose of the protrusive record

In dental school, you may have been asked to set your articulator’s condylar settings to a set number on Frankfort’s or Camper’s plane. It may have been for dentures, yet anecdotally, it may be used as typical for a setup in any case.

For those of you new to using this record, you will soon find that even condylar settings on a single patient may vary dramatically, from left to right.

The protrusive record allows a clinician to extrapolate all mandibular movements: maximum intercuspal position (MIP), protrusive end-to-end, lateral excursive, and the pathways to them. Of course, I mean all mandibular movements but the seated condylar position and how the mandible works against the maxilla. By teaching the patient how to protrude their mandible and “bite over their front teeth,” we can then measure the steepness or shallowness of their articular eminences (the bony slopes on which the mandible travels downward and forward).

After fabricating this record, we can use it to bring diagnostic casts together on an articulator and adjust the condylar guidance settings to establish that patient’s settings unique to them. From this record, along with a sound facebow, centric record and accurate casts, the articulator is now a jaw simulator for that patient.

Materials for taking a protrusive record

Historically, the protrusive is made with Master Wax from Great Lakes Orthodontics, a rigid wax made malleable when needed. There are times, however, when other materials may benefit both the clinician and patient in ease of execution. Occlusal schemes, molar relationships, and overbites may play a role in desiring an alternative material. I also found the Great Lakes Orthodontics ACU-flow bite registration material helpful. Examples and images will follow.

Fabricate and replicate a wax platform

For the sake of brevity, the steps for fabrication and replication were put together since they are basically the same.

The following images show a previously fabricated wax platform with an M on it. That is the master wax platform that acts as a stencil so all future platforms may be cut similarly. Use these images to size up the angles to make your first cut. Make a bunch, ask your staff to act as patients, and try some of them in, making sure you can cover the occlusal tables, preferably from at least the cuspids to the first or second molars. When you find the one that fits that description, make it the master, clean it, and place an M on it. Your staff can now use that to fabricate dozens using the steps below, ready for use at any time!

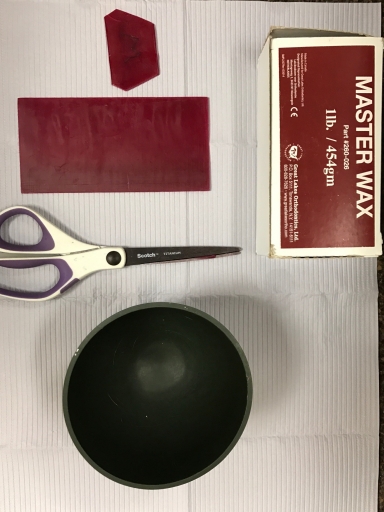

Step 1: You will need scissors and a bowl of hot water.

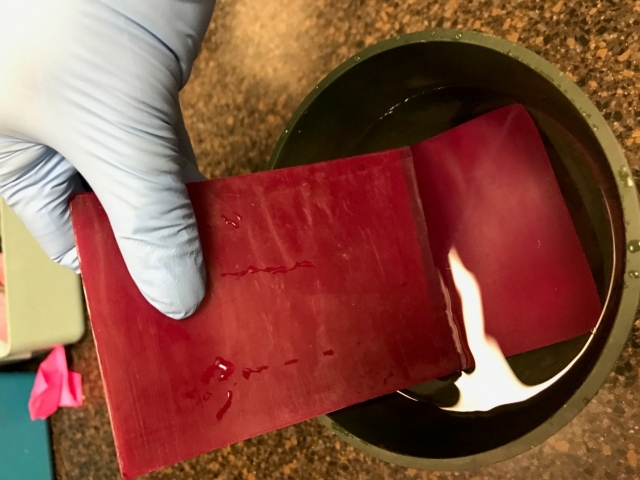

Step 2: Immerse the wax in the water until it becomes “al dente” — soft and malleable, but not floppy and gooey.

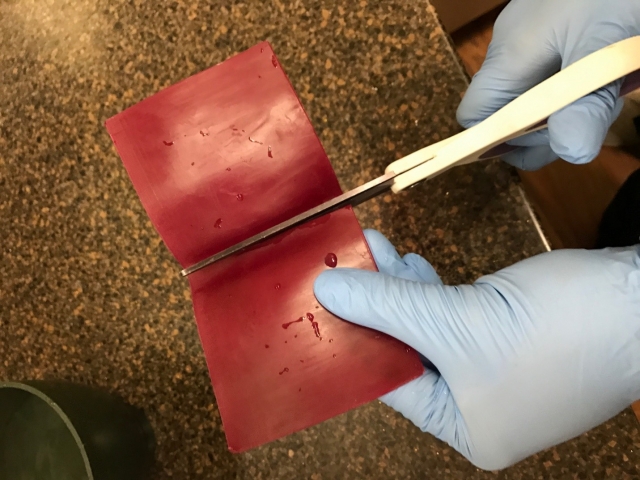

Step 3: Fold the wax exactly in half and make a crease. Cut along that crease. You now have two equal pieces of wax; each piece makes one wax platform.

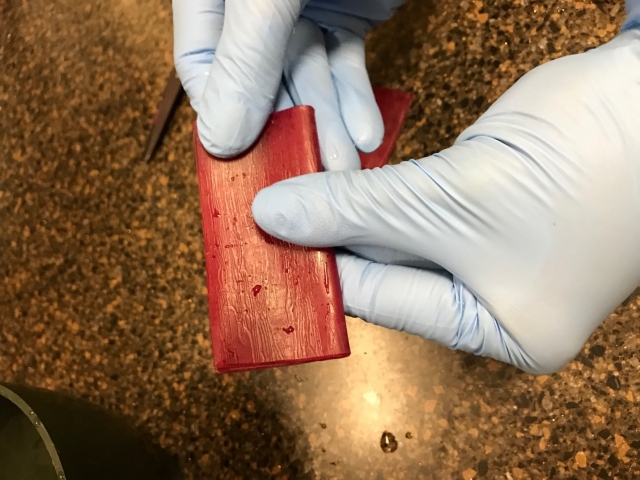

Step 4: Take one of the two pieces and fold it again, exactly in half. Place it on a flat table or lab bench surface and press flat, but do not squish and flatten, losing its thickness.

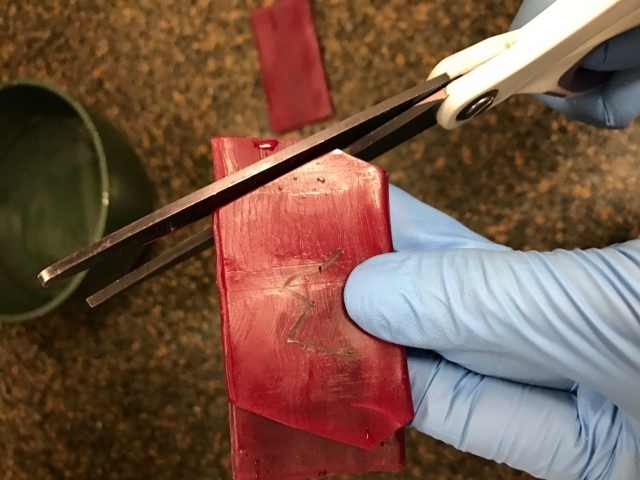

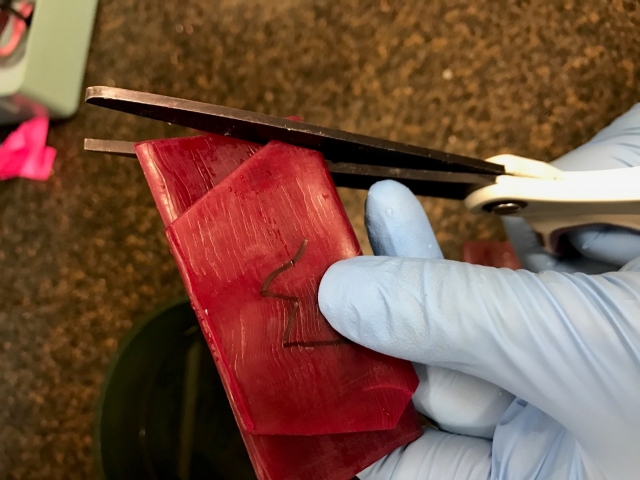

Step 5: This is where we combine the steps of making and replicating. This image illustrates a simple method by transposing these pieces of wax and cutting the shape, just like a third-grade art class. Remember, all we do daily is high-end arts and crafts.

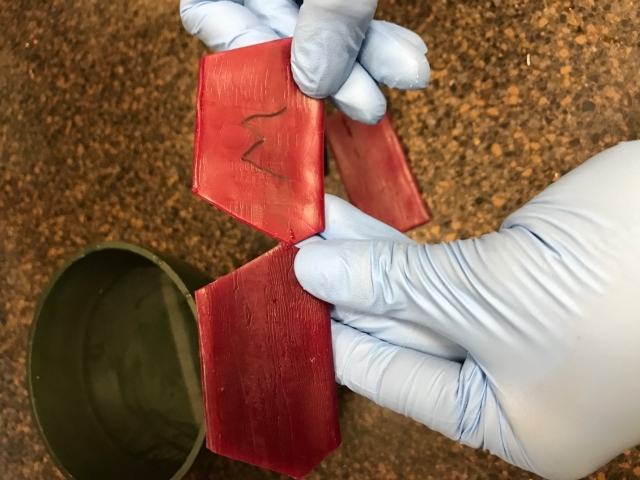

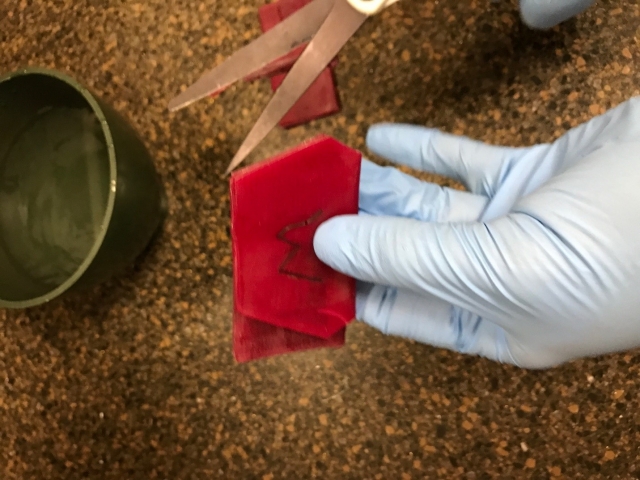

Step 6: The platforms are identical and ready for use.

How the materials are used

This segment is about thinking outside the box. The article is a guideline to assist in making these platforms and, ultimately, records, because it is tried and true. But the bottom line is, sometimes you cannot manage with just one way of thinking. Think for yourself! The sole goal is to get imprints of teeth, maxillary and mandibular, where the mandible is more forward than it would exist in a maximum intercuspal position. I state it that way because some bites are more challenging to deal with using the methods above:

• Class II molar with a deep overbite
• Class II molar with an anterior open bite
• Class I molar with a deep overbite
• Class III molar with an anterior open bite

This is all patient-dependent and not gospel. Three examples are illustrated below:

• Class I molar with a reasonable overbite and overjet
• Class II molar with a deep anterior segment
• Class II molar with an anterior open bite

The last two modify what you were taught in the above steps, mainly because that simple wax platform is too thin, too short, or both to obtain enough tooth imprints to articulate the casts later. When these patients translate their mandible down the articular eminence and reach forward, they often create too much interocclusal space for a standard master wax platform.

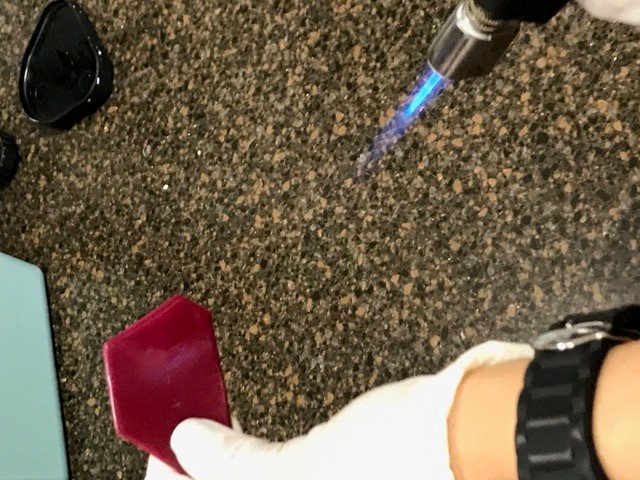

Chairside: It is very important that these platforms do not distort, or they will not allow both casts to seat in their correct orientation. Warm the sides only carefully with a torch, enough for it to shine but not drip. Once the record is taken in the mouth, take time to cool the buccal aspects with air from the air/water syringe. Ask the patient to “snap” open. Remove and place in a cup of cold water.

This patient is easy and compliant, with a Class I molar relationship. Look at the edges of the anterior teeth. Notice how #8 fits perfectly with #25 and #26, with end-to-end wear; he is only 16 years old.

This woman is in Class II with a deep anterior segment. When she protrudes, the interocclusal space is too much. In this case, we went double thickness, heating two platforms together for extra thickness. It works great!

The last patient is a Class II with an anterior open bite and a retrognathic mandible. This image shows her in full protrusion. A standard wax platform would not fit.

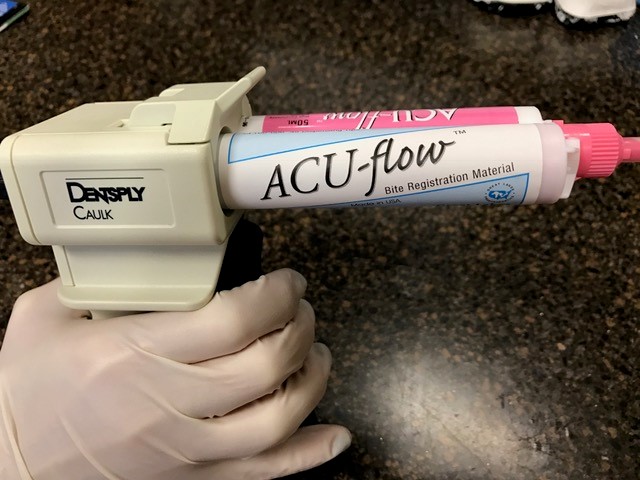

 In this instance, Acu-flow bite registration easily occupies the space needed to provide a stable protrusive record to bring to the articulator.

Despite the details outlined in this article, the protrusive record is the fastest and easiest of all the bite records. Despite its simplicity, care must be used at each step to ensure comfort for the patient and accuracy of the record, enabling a reproducible result on the articulated casts.

Like all things, the result of the step you are on is only as good as the one previous.
